RF Gain Blocks

Products screened and qualified to: MIL-PRF-38535 Class Q & Class V

Gain Blocks

RF Self Biased Gain Blocks designed for space and high reliability applications

Criteria Labs has developed high performance self biased GaAs RF amplifiers to meet stringent reliability and quality requirements for space applications that are assembled, screened and qualified  to MIL-PRF-38535 Class Q & V specifications. This lineup of gain blocks are available from DC to 12 GHz (L thru X band) and packaged in a small foot print hermetic, space qualified package. With noise figures below 1.0 db in microwave frequencies, our Indium Gallium Phosphide heterojunction bipolar trasistors  (InGaP HBT) and pseudomorphic high electron mobility transistors (E-pHEMT) gain blocks are have been designed for highly sensitive SATCOM and radar applications and are built for survivability rated RF/Microwave military and aerospace radio designs. Additional features include self biased configurations that eliminating external bias controls and reduces support components.

Qorvo / RMFD Gain Block Replacements

Qorvo / RFMD Criteria Labs Replacement Equivalent

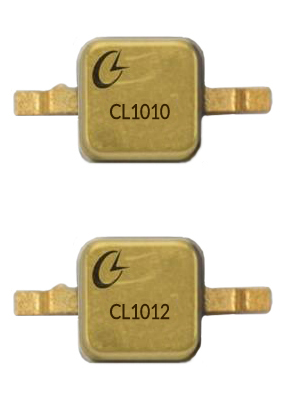

SBB-4082 CL-1010
SBB-5082 CL-1012
Part# Technology Package F Low
(Mhz) 		F High
(Mhz) 		Gain
(dB) 		NF
(dB) 		OP1
(dBm) 		OIP3
(dBm) 		Vcc
(V) 		Icc
(ma)
CL-1068 pHEMT SMT2 500 8000 21.9 1.2 21.2 36.8 6 77
CL-1066 E-pHEMT SMT2 30 2000 21.3 1.2 28.4 44.4 8 235
CL-1064 E-pHEMT SMT2 50 1500 15.2 4 25.8 45 9 182
CL-1058 E-pHEMT SMT2 50 4000 17.6 0.8 16.4 28.5 3 33
CL-1056 E-pHEMT SMT2 30 2000 19.7 1 18.8 30.9 3 72
CL-1046 E-pHEMT SMT2 50 4000 11.3 0.8 22.3 41.6 5 97
CL-1044 InGaP HBT SMT2 0 8000 12 6 14 30 5 56
CL-1042 E-pHEMT SMT2 50 6000 13.6 2.1 22.5 39 5 155
CL-1040 E-pHEMT SMT2 50 6000 13.8 2.2 22.6 41 5 132
CL-1038 InGaP HBT SMT2 0 10000 14 4.5 13 24 5 56
CL-1036 InGaP HBT SMT2 0 4000 15 4.5 15 28 5 54
CL-1034 InGaP HBT SMT2 0 10000 15 4 13 25 5 50
CL-1032 E-pHEMT SMT2 40 2600 15.1 1.9 18.4 36.9 5 65
CL-1030 E-pHEMT SMT2 50 6000 15.6 2.4 22.2 35 5 92
CL-1028 InGaP HBT SMT2 0 7000 16 5.5 21 35.8 5 108
CL-1026 InGaP HBT SMT2 10 12000 16.7 3.9 15.9 29.1 5 48
CL-1024 E-pHEMT SMT2 50 4000 18.4 0.8 19 34 5 58
CL-1022 E-pHEMT SMT2 450 6000 19.1 0.4 21 33.1 5 120
CL-1020 InGaP HBT SMT2 10 6000 19.3 3.9 18.2 29 5 93
CL-1018 pHEMT SMT2 10 10000 19.5 1.1 21 33 5 65
CL-1016 pHEMT SMT2 500 8000 21 1.2 19.6 30.5 5 60
CL-1014 E-pHEMT SMT2 30 2000 21 1 23.9 37.4 5 141
CL-1012 InGaP HBT SMT2 10 6000 20 3.7 18.2 35 5 71
CL-1010 InGap HBT SMT2 10 6000 15.5 4.5 19 38 5 80
